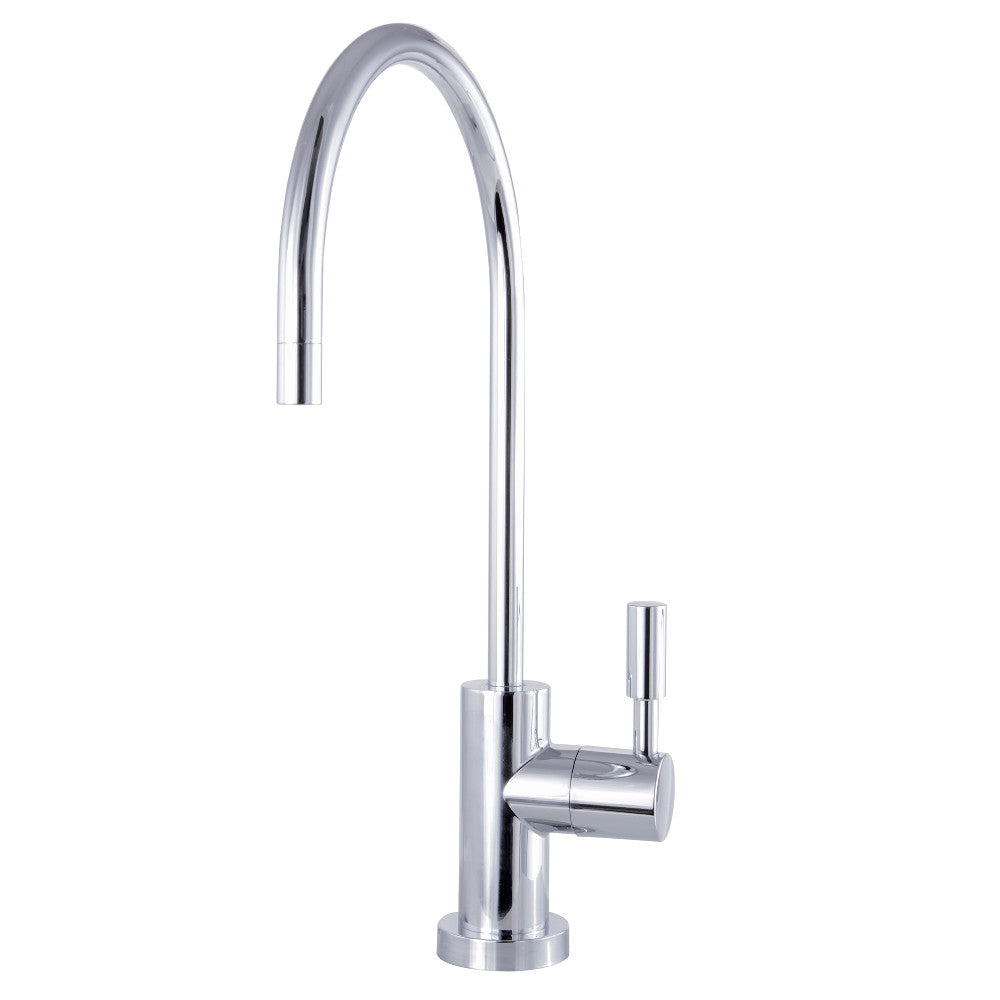

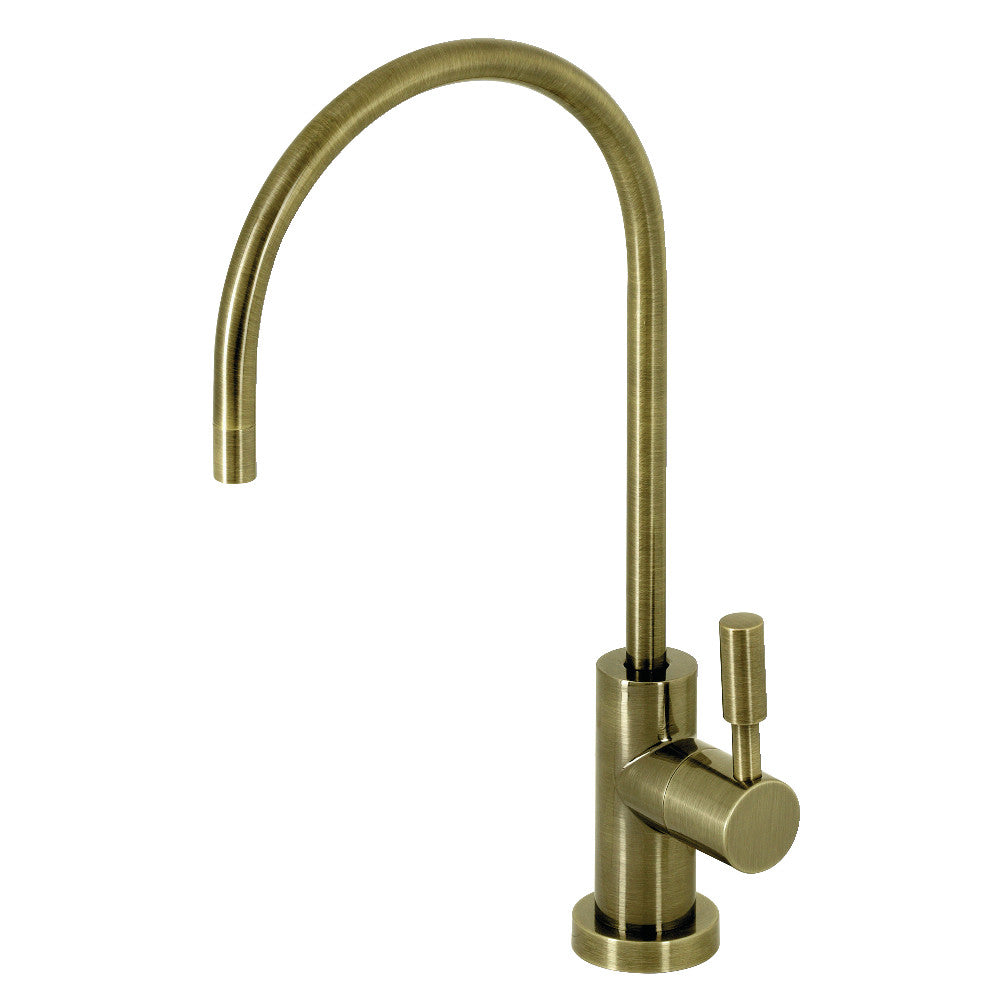

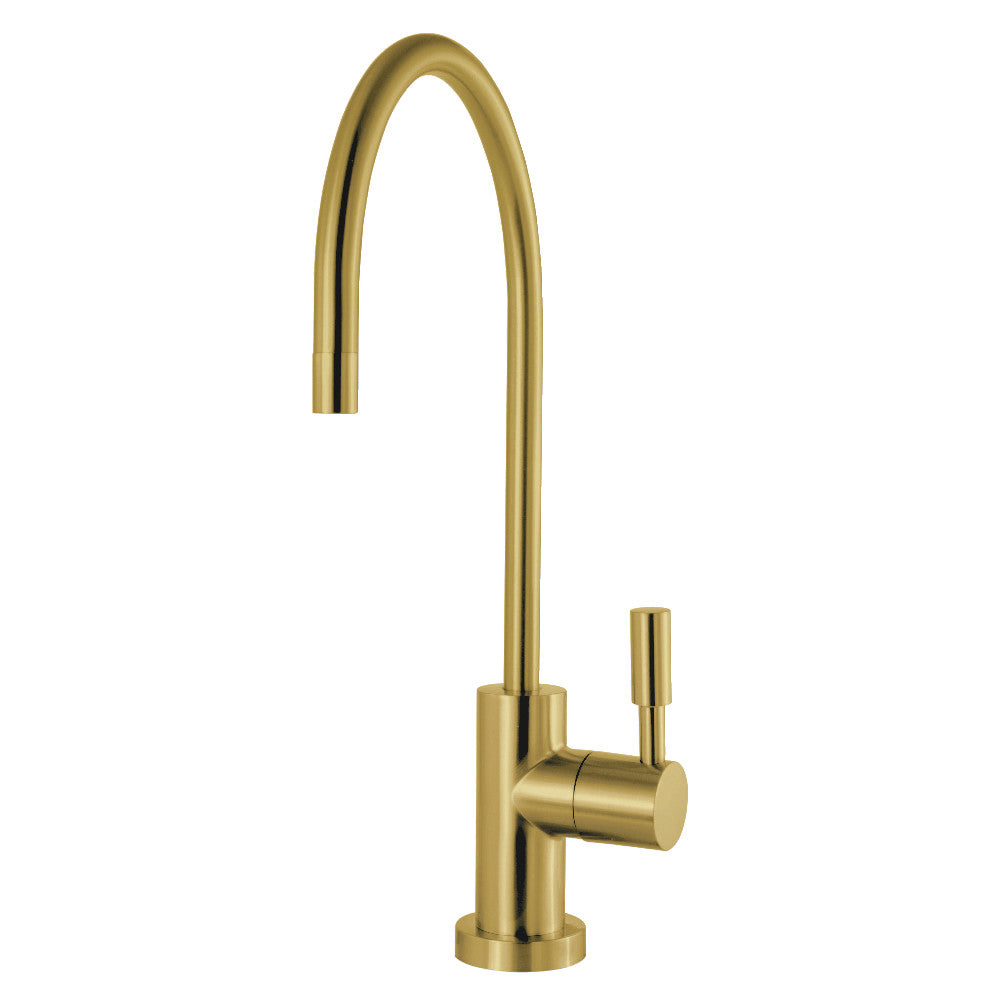

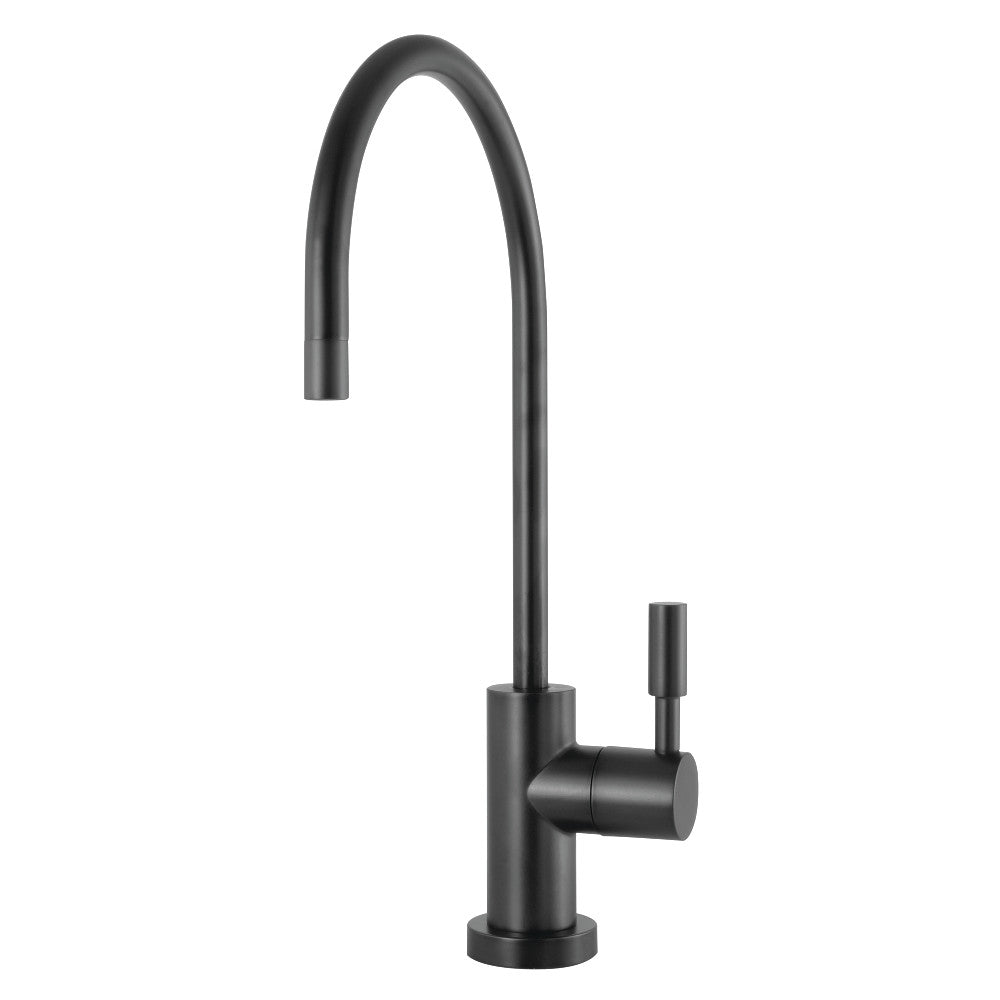

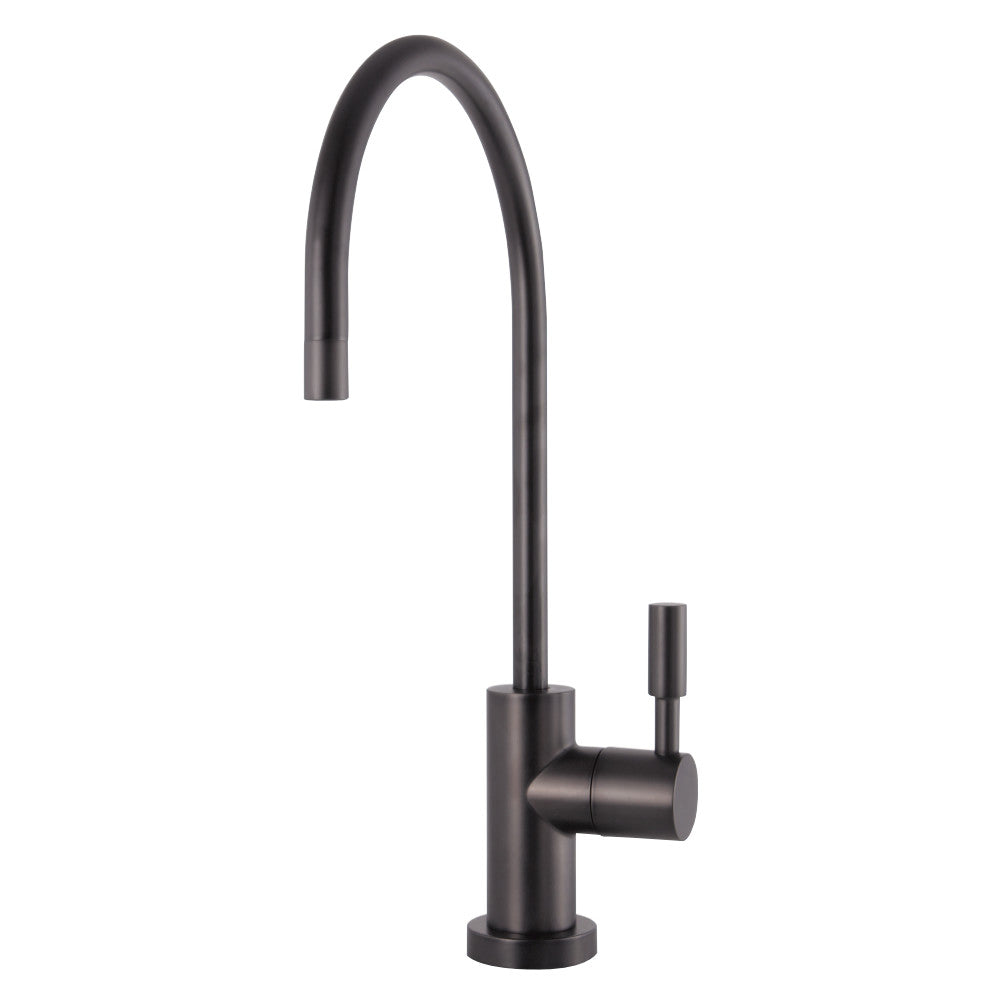

Kingston Brass KSAG8198DL Concord Reverse Osmosis System Filtration Water Air Gap Faucet

Allow this faucet to provide you with instant, crystal clear drinking water while reducing plastic waste. Ergonomically designed, it will enhance your kitchen's modern theme while adding functionality. Complete with air gap technology, contaminated water waste will be prevented from backing up into the system. Use with an under the counter filtration system that is compatible for use with reverse osmosis air gap water filtration faucets.


  • Solid brass and zinc alloy construction
  • Drip-free ceramic disc cartridge
  • Deck mount single-hole installation
  • 1.0 GPM/3.8 LPM spout flow rate at 60 PSI
  • 7-3/16" spout clearance
  • 5-3/4" spout reach
  • 11-1/2" spout height
  • Single lever handle meets ADA guidelines
  • Corrosion-resistant finish


Collection Concord
Theme Modern
Material Brass;Zinc Alloy
Mounting Type Deck Mount
Installation Type Deck Mount
Faucet Holes 1
Max Deck Thickness 1.88
Drain Included No
Handles Included Yes
Number of Handles 1
Handle Style Lever
Spout Flow Rate (GPM) 1
Hose Included Yes
Pullout Spray No
Pulldown Spray No
Sidespray No
Valve Type Ceramic Disc Cartridge
Country of Origin Taiwan
Warranty 10
Product Dimensions (LxWxH) 2.75 x 5.75 x 11.5
Product Weight (lbs) 1.23
Packaged Dimensions (LxWxH) 14.57 x 6.89 x 1.38
Packaged Weight (lbs) 1.34
CUPC Certified No

Download Explosion Chart

Download Measurement Chart

Download Installation Chart

Measurement Charts

Exploded Parts Diagram
